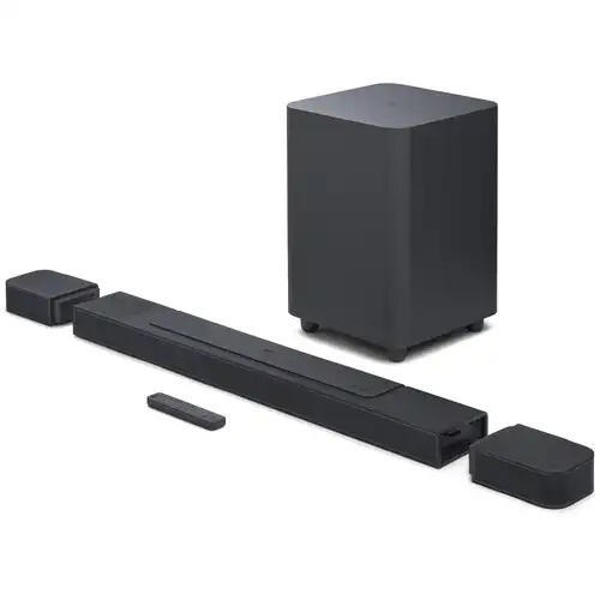

JBL Bar 1000 7.1.4 Channel Soundbar with Detachable Surround And Dolby Atmos Speaker

JBL Bar 1000 7.1.4 Channel Soundbar

Features:

• True Dolby Atmos, Dts:X, And Multibeam Surround Sound
• Real Surround Sound with Detachable Surround Speakers
• Built-In Wi-Fi with Airplay, Alexa Multi-Room Music and Chromecast Built-In
• Works with voice assistant-enabled speakers
• 880W output power
• 10” wireless subwoofer
• Purevoice dialogue enhancement technology
• HDMI eARC with 4K Dolby Vision pass-through
• Easy sound calibration
• JBL one app

Specifications:

General Information

• Sound system: 7.1.4 channel
• Power supply: 100 - 240V AC, ~ 50/60Hz
• Networked standby power: < 2.0W
• Operating temperature: 0°C - 45°C
• Lithium battery: 3.635V, 3283mAh

Audio Specifications

• Total speaker power output (Max @THD 1%): 880W
• Soundbar output power (Max @THD 1%): 440W
• Surround speaker output power (Max @THD 1%): 2x 70W
• Subwoofer output power (Max. @THD 1%): 300 W
• Soundbar transducer: 5x (46x90) mm racetrack drivers, 3x 0.75" (20mm) tweeters, 2x 2.75" (70mm) up-firing full-range drivers
• Surround speaker transducer: 0.75" (20mm) tweeters, 2.75" (70mm) up-firing full-range drivers
• Subwoofer transducer: 10” (260mm)
• Frequency response: 33Hz - 20kHz (-6dB)
• Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Control and Connection Specifications

• USB port: Type A
• USB rating: 5V DC, 0.5A
• Supporting file format: MP3: MP3 codec | MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
• MP3 sampling rate: 16 - 48 kHz
• MP3 bitrate: 80 - 320 kpbs
• Bluetooth version: 5.0
• Bluetooth profile: A2DP 1.2, AVRCP 1.5
• Bluetooth transmitter frequency range: 2400MHz – 2483.5MHz
• Bluetooth transmitter power: <15dBm (EIRP)
• Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
• 4G Wi-Fi transmitter frequency range: 2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)
• 4G Wi-Fi transmitter power: < 20dBm (EIRP)
• 5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz
• 5G Wi-Fi transmitter power: 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)
• 4G wireless frequency range: 2406 - 2474MHz
• 4G wireless power: ＜10dBm (EIRP）

Video Specifications

• HDMI video input: 3
• HDMI video output (with Enhanced Audio Return Channel, eARC): 1
• HDMI HDCP version: 2.3
• HDR pass through: HDR10, Dolby Vision

Dimensions

• Total soundbar dimensions (W x H x D): 1194 x 56 x 125mm / 47" x 2.2" x 4.9"
• Main soundbar dimensions (W x H x D): 884 x 56 x 125 mm / 34.8" x 2.2" x 4.9"
• Detachable surround speaker dimensions (each) (W x H x D): 155 x 56 x 125 mm / 6.1" x 2.2" x 4.9"
• Subwoofer dimensions (W x H x D): 305 x 440.4 x 305 mm / 12" x 17.3" x 12"
• Soundbar weight: 3.7 kg / 8.2 lbs
• Detachable surround speaker weight (each): 1.4kg / 3.1 lbs
• Subwoofer weight: 10 kg / 22 lbs
• Packaging dimensions (W x H x D): 1000 x 375 x 475 mm/ 39.4" x 14.8" x 18.7"
• Packaging Weight: 19.4 kg / 42.7 lbs
