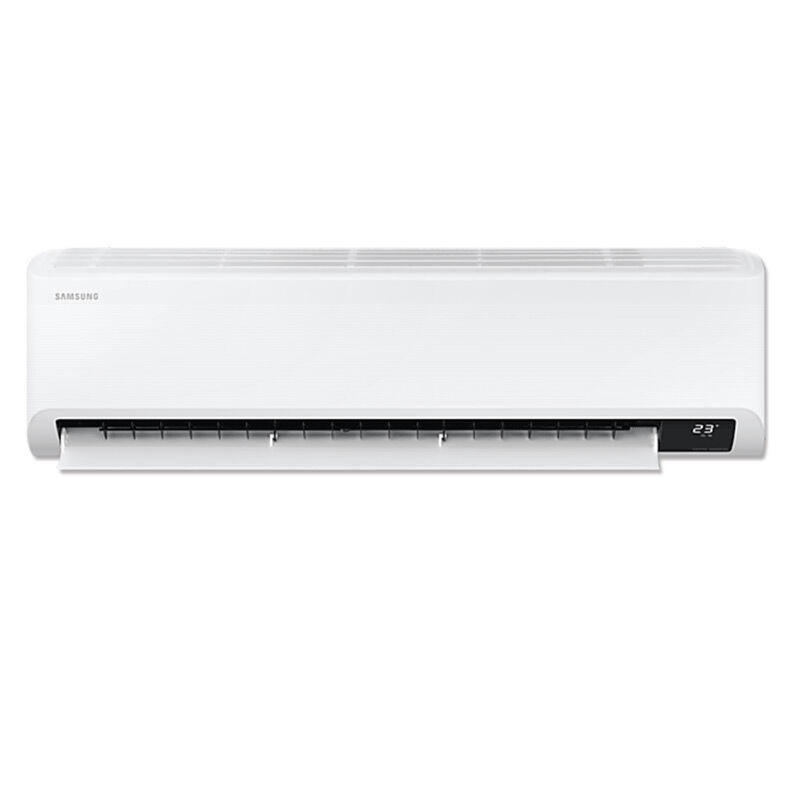

Samsung 1.5 Ton Inverter Step-Up Air Conditioner with Digital Inverter (AR18CVFYAWK1FE)

Details

Samsung 1.5 Ton Inverter Step-Up Air Conditioner with Digital Inverter

Key Features:

• AI Auto Cooling & Wi-Fi
• Digital Inverter Boost
• DuraFin™ Plus (Copper Condenser)
• Fast Cooling
• Copper Anti-bacterial Filter
• 3-step Auto Clean
• Smart control with a touch or voice

Specifications:

Capacity:

• Capacity (Cooling, Btu/hr.): 18,000 Btu/hr.
• Capacity (Cooling, Min-Max, Btu/hr.): 5,500 - 21,500 Btu/hr.
• Capacity (Cooling, kW): 5.28 kW
• Capacity (Cooling, Min-Max, kW): 1.61 - 6.3 kW

Energy Efficiency:

• EER (Cooling, W/W): 3.26 W/W
• EER (Cooling, Btu/hW): 11.11 Btu/hW
• ISEER: 3.24
• Energy Star Rating (Cooling): 1.5 Star

Noise Level:

• Noise Level (Indoor, High/Low, dBA): 44/28 dBA
• Noise Level (Outdoor, High/Low, dBA): 53 dBA

Technical Information:

• Piping Length (Max, m): 30 m
• Piping Height (Max, m): 15 m
• SVC Valve (Liquid): 6.35 (ODxL)
• SVC Valve (Gas): 12.7 (ODxL)
• Moisture Removal: 2.0 l/hr.
• Air Circulation (Cooling): 17.9 ㎥/min
• Refrigerant (Type): R410A
• Refrigerant (Charging, kg): 1.25 kg
• Refrigerant (Charging, tCO2e): 2.61 tCO2e
• Low Ambient (Cooling): 16 ~ 46℃
• Outdoor Unit (Compressor Type): BLDC
• Outdoor Unit (Anti-Corrosion Fin): Yes

Air Flow:

• WindFree Cooling: No
• Air Direction Control (Up/Down): Auto
• Air Direction Control (Left/Right): Auto
• Air Flow Control Step (Cool/Fan): 5/4

Air Purification:

• PM 1.0 Filter: No
• Tri-Care Filter: No
• 4-in-1 Care Filter: No
• Copper Anti-bacterial Filter: Yes
• Auto Clean (Self-Cleaning): Yes

Functions:

• SmartThings: Yes
• AI Auto Cooling: Yes
• Motion Detect Sensor: No
• Freeze Wash: No
• Filter Cleaning Indicator: Yes
• Indoor Temp. Display: Yes
• Display On/Off: Yes
• Beep On/Off: Yes
• 24-Hour Timer: Yes
• Auto Changeover: No
• Auto Restart: Yes
• Wi-Fi Embedded: Yes
• SmartThings App Support: Yes

Operating Mode:

• Auto Mode: Yes
• Fast Cool: Yes
• Good Sleep: Yes
• Eco Mode: Yes
• 5 Step Mode: No
• Dehumidification: Yes
• Fan Mode: Yes
• Quiet: Yes

Power:

• Power Source(Φ/V/Hz): 1 / 230 / 50
• Power Consumption (Cooling, W): 1620 W
• Operating Current (Cooling, A): 7.4 A

Physical Specifications:

• Gross Dimension (Indoor, WxHxD): 1115*290*375 mm
• Gross Dimension (Outdoor, WxHxD): 913*622*371 mm
• Net Dimension (Indoor, WxHxD): 1055*299*215 mm
• Net Dimension (Outdoor, WxHxD): 790*548*285 mm
• Gross Weight (Indoor, kg): 13.20 kg
• Gross Weight (Outdoor, kg): 36.30 kg
• Net Weight (Indoor, kg): 11.60 kg
• Net Weight (Outdoor, kg): 32.00 kg
• Loading Quantity (20/40/40Hft without Pipe): 80/168/198
