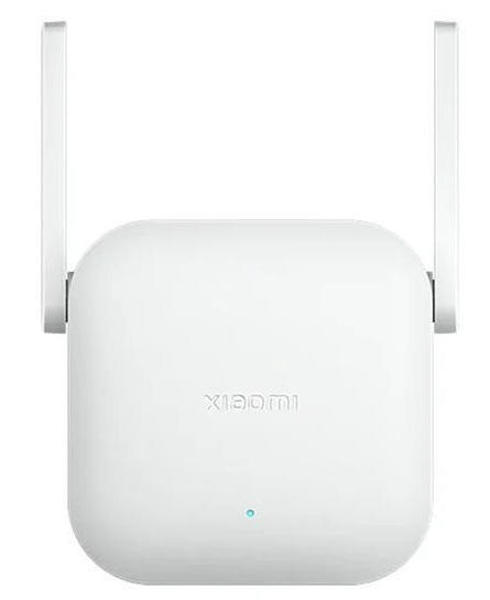

Xiaomi WiFi Range Extender N300 300Mbps - White

Technical Specification for the Xiaomi WiFi Range Extender N300

Technical Specifications

• Product Model: RD10/RD10M
• Dimensions: 80x54x70mm
• Antenna Type: 2 external antennas
• Wireless Standards: IEEE 802.11b/g/n
• Signal Rate: 2.4GHz, up to 300Mbps
• Wireless Security: WPA-PSK/WPA2-PSK encryption
• Power Supply: 100-240V/0.35A

Operating Environment

• Operating Temperature: 0-40°C
• Operating Humidity: 10%-90%RH (non-condensing)
• Storage Temperature: -40-70°C
• Storage Humidity: 5%-90%RH (non-condensing)
• Power Consumption: 3.57W

Package Contents

• Xiaomi WiFi Range Extender N300
• Warranty notice
• User manual

Installation Method 1 (For Mi Routers with MiNET support)

1. Place the extender near the Mi router and wait for the yellow light to flash after powering on.
2. Click the MiNET button on the router and wait to access it.
3. Once set up successfully, the blue light on the extender will stay on. You can then move the extender to another location.

Installation Method 2 (For non-Mi Routers)

1. Place the extender close to the router and wait for the yellow light to flash after powering on.
2. Download the Mi Home App, open it, click '+' to add the extender, and follow the prompts.
3. After successful setup, the blue light will stay on. You can then move the extender to another location.
